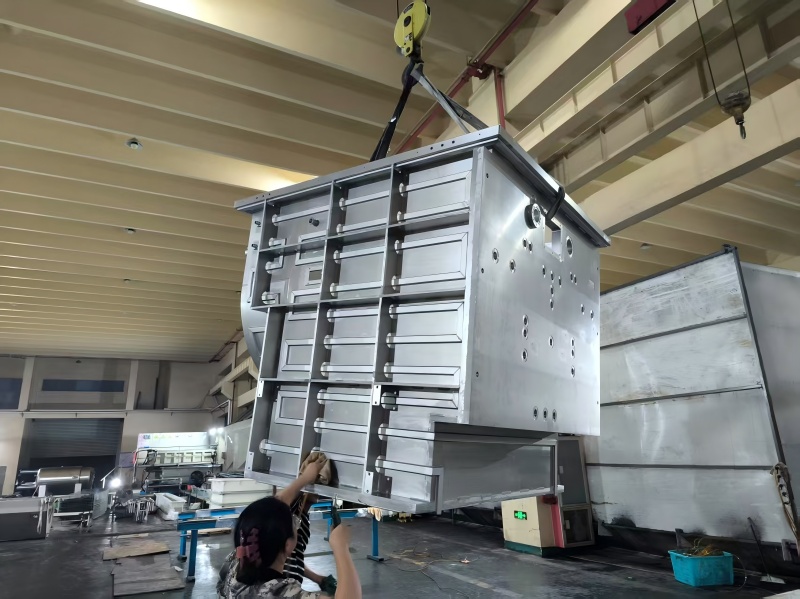

Achieving and maintaining high vacuum or ultra-high vacuum (UHV) requires surfaces that are exceptionally clean and inert. Acid cleaning (or pickling) is a fundamental, specialized process applied to the internal surfaces of vacuum chambers, primarily those made of stainless steel, to meet this demanding requirement. Its core functions are multifaceted and essential for optimal chamber performance:
Eliminating the Primary Outgassing Source: Oxides & Passivation Layers:
The Problem: During fabrication (welding, heat treatment) and exposure to air, stainless steel naturally forms a thin chromium oxide (Cr₂O₃) passivation layer. While this layer offers general corrosion resistance, it’s detrimental in vacuum environments.
The Acid Solution: Acid cleaning aggressively dissolves this oxide layer and any other surface oxides (e.g., from welding heat tint).
The Vacuum Benefit: Oxides are porous and highly adsorbent, trapping significant amounts of water vapor (H₂O), hydrogen (H₂), carbon monoxide (CO), and carbon dioxide (CO₂). Removing them drastically reduces the chamber’s primary source of outgassing, enabling faster pump-down to target pressures and significantly improved base pressure stability.
2. Removing Metallic Contaminants and Embedded Particles:
The Problem: Machining, cutting, grinding, welding, and handling can leave behind or embed microscopic particles of foreign metals (iron, copper, aluminum, etc.) or abrasive grit on or just below the surface.
The Acid Solution: The chemical action of the acid bath dissolves or loosens these contaminants, flushing them away.
The Vacuum Benefit: Embedded particles can act as localized outgassing points or, worse, become dislodged during operation, causing particulate contamination of sensitive processes (thin-film deposition, semiconductor fabrication, particle physics experiments). Acid cleaning minimizes this risk.
3. Surface Activation and Homogenization:
The Problem: The native oxide layer and contamination create a surface that is chemically heterogeneous and passive. Micro-imperfections like scratches or weld zone variations can also trap contaminants.
The Acid Solution: Stripping away the oxides and contaminants exposes a fresh, chemically active, and uniform metal surface.
The Vacuum Benefit: A uniform surface is crucial for consistent performance and effective subsequent processing. The activated state prepares the surface perfectly for the next critical step: high-quality passivation.
4. Enabling High-Quality Passivation:
The Crucial Link: Acid cleaning is not the final surface treatment; it is the essential preparation for effective passivation (often using nitric acid or citric acid).
The Mechanism: Only a surface thoroughly cleaned of oxides, embedded metals, and contaminants can form a new passive layer effectively.
The Vacuum Benefit: This newly formed passivation layer is denser, more uniform, more stable, and crucially, has far lower gas adsorption capacity than the native oxide it replaces. This high-quality passive layer is the ultimate key to achieving the lowest possible outgassing rates and long-term stability required for UHV applications. It provides superior corrosion resistance specific to the vacuum environment.
5. Aiding Removal of Certain Inorganic Residues:
While primarily targeting oxides and metals, acid solutions (especially those containing oxidizing acids like nitric acid) can also help dissolve or remove some inorganic salts and residues left from prior handling or processing.
The Ultimate Goal: Achieving Vacuum Performance
The combined effect of these functions translates directly into critical operational advantages:
Faster Pump-Down Times: Reduced initial gas load from the cleaned surfaces.
Lower Ultimate Base Pressure: Drastically reduced outgassing rates.
Improved Pressure Stability: Consistent, predictable vacuum levels.
Reduced Contamination Risk: Minimized particles and potential sources of process-interfering species.
Enhanced Process Yield and Reproducibility: Cleaner, more stable environment for sensitive operations.
Long-Term Reliability: A properly cleaned and passivated surface is more resistant to corrosion under vacuum conditions.
Critical Considerations:
Material Specificity: The acid formulation (e.g., HF/HNO₃ mixtures for stainless steel), concentration, temperature, and duration must be carefully selected and controlled based on the chamber material (304, 316L, Aluminum, Titanium etc.) to avoid excessive etching or damage.
Rigorous Rinsing: Following acid cleaning, exhaustive rinsing with high-purity water (Deionized – DI, or Ultrapure – UPW) is absolutely mandatory to remove all traces of acid. Residual acid is a severe contaminant and corrosion initiator.
Integrated Process: Acid cleaning is typically followed immediately by passivation and often vacuum baking to desorb water.
Safety & Environment: Handling strong mineral acids (HF, HNO₃, HCl) requires stringent safety protocols (PPE, ventilation) and environmentally responsible waste stream management.
Conclusion:
Acid cleaning is far more than just a cleaning step; it’s a vital surface engineering process for vacuum chambers. By meticulously removing the detrimental native oxides, embedded contaminants, and activating the surface, it lays the essential foundation for the subsequent formation of a high-performance passive layer. This process chain is indispensable for achieving the ultra-low outgassing rates and surface cleanliness demanded by high vacuum and ultra-high vacuum systems, directly enabling their functionality, reliability, and the success of the critical processes performed within them.
