Customized SS304 vacuum ISO Flexible Bellows

Short Description:

vacuum flexible hoses range consists of lots of different type of flexible metal hoses, such as KF / CF / ISO flange type , Braided cover and One Flange Rotatable. Vacuum flexible hoses are suitable for mechanical pump piping lines.

Send email to us

Product Detail

Product Tags

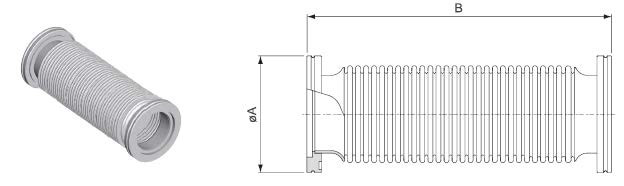

ISO Flexible Bellows

EVPartNumber	Size	A	B	Material	Order Number
EVFX63-250	ISO63	95	250	304SS	B503
EVFX63-500		95	500	304SS	B504
EVFX63-750		95	750	304SS	B505
EVFX63-1000		95	1000	304SS	B506
EVFX80-250	ISO80	110	250	304SS	B511
EVFX80-500		110	500	304SS	B512
EVFX80-750		110	750	304SS	B513
EVFX80-1000		110	1000	304SS	B514
EVFX100-250	ISO100	130	250	304SS	B519
EVFX100-500		130	500	304SS	B520
EVFX100-750		130	750	304SS	B521
EVFX100-1000		130	1000	304SS	B522
EVFX160-250	ISO160	180	250	304SS	B527
EVFX160-500		180	500	304SS	B529
EVFX160-750		180	750	304SS	B530
EVFX160-1000		180	1000	304SS	B531
